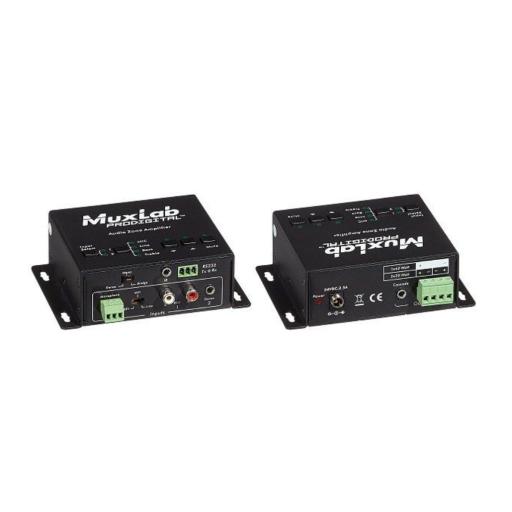

MuxLab Audio Zone Amplifier

• Two Analog Stereo Audio Inputs

• Microphone input with 48V phantom supply

• 20W per channel into 4-ohm

• Cascadable to further amplifiers

• Compatible with MuxLab Hi-Fi Audio Baluns and Audio Matrix Switch

• Volume control

• Ground loop isolation

• Controllable via pushbuttons, RS232 and optional IR

The MuxLab Audio Zone Amplifier is a Class D digital amplifier that allows one (1) analog source to be distributed to a pair of 20W per channel stereo speakers within a zone. The Audio Zone Amplifier can be cascaded infinitely across multiple zones to give a multi-room audio solution.

The Audio Zone Amplifier features two (2) stereo analog audio input lines, microphone input with 48V phantom supply, and two (2) 20W, 4-ohm speaker outputs or one (1) 40W, 8-ohm speaker output.

Volume and source control via the front push buttons, or via IR using the optional IR Sensor & Handheld Remote Control Kit (500216-IR).
