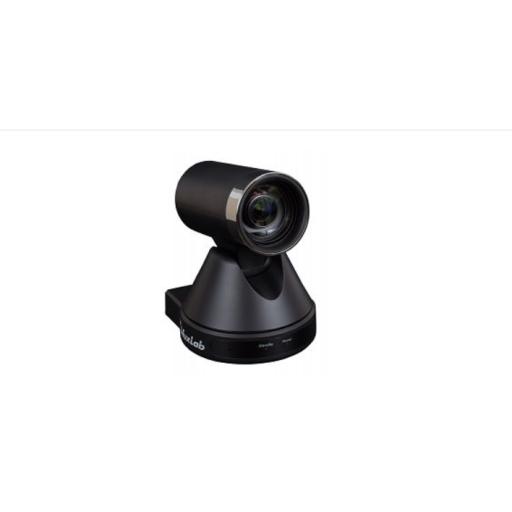

MuxLab MuxStream HDMI / IP PTZ Camera for Live Streaming Kits

• Maximum resolution of 1920 x 1080 (Full HD) at 60Hz

• Supports a Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor

• Uses a 72.5° wide-angle high quality lens

• Supports a 12x optical zoom, and up to 16x digital zoom

• High SNR CMOS sensor combined with 2D & 3D noise reduction algorithm,

• effectively reducing noise even under low light

• Supports AAC audio encoding for better sound quality at a lower bandwidth

• Designed with worm gear drive for reliable and accurate movement

• May be remotely controlled via RS232 and IP

• To be used with Live Streaming Kit models 500785, 500786

The MuxLab MuxStream Camera is a full HD 1080p HDMI and IP streaming camera with Pan, Tile and Zoom capability for extreme flexibility and reach. The camera supports both uncompressed video via an HDMI outport for local connectivity, and H.264/H.265 compressed video for streaming over the Internet, while supporting a 12X optical zoom and 16X digital zoom.

The MuxStream Camera is suitable as a standalone device for video conferencing, education, houses of worship, fitness training and many other live streaming applications to broadcast services such as YouTube, Facebook, Wowza and others. The device is also compatible with MuxLab’s Live Streaming kits include the 500785 Multi-Camera Live Streaming Solution, and 500786 Single Camera Live Streaming solution which support enhanced features and capabilities.
The MuxStream Camera supports a 1/2.7³, 2.07 million effective pixel high-quality CMOS sensor to capture video, plus an audio input for 2 channel audio sources such as microphones. The camera supports a focal length of f3.5mm to 42.3mm, an aperture of F1.8 to 2.8, a shutter speed of 1/30s to 1/10000s, and a minimum illumination of 0.5 Lux for low-light conditions.
The MuxStream Camera may be remotely managed via IP and RS232 for added convenience.
